LGK-63/120/160/200IGBT Inverter Air Plasma Cutting Machine

Name: LGK63120160200IGBT Inverter Air Plasma Cutting Machine
Brand: GENWELD
Price: 1 USD

LGK-63/120/160/200IGBT Inverter Air Plasma Cutting Machine Manufactures

Brand Name : GENWELD

Model Number : LGK-63/120/160/200 IGBT

Place of Origin : Chongqing, China

MOQ : Five sets

Payment Terms : T/T

Supply Ability : 100 sets per month

Packaging Details : 585×280×485/695x320x580/800x380x610/800x380x810

Certification : CE

Delivery Time : 20days after received 50% prepayment

Contact Now

Main Features
■ Soft switch technology with stable cutting current
■ High duty cycle for heavy industry use
■ Cutting current up-slope technology to reduce loss of wearing parts
■ Small volume and light weight which is easy to install on the table of CNC cutting machine
■ Use compressed air as protection to save cost
■ Accurate cutting current preset and stepless adjust
■ Gas check function for easy adjust the air pressure
■ Suitable for both handheld cutting and automatic CNC machine cutting

Product Application
■ Suit manual and automated cut for carbon steel,alloy steeland nonferrous steel

Main Technical Parameters
ltem	Unit	Model
ltem	Unit	LGK-63IGBT	LGK-120IGBT	LGK-160IGBT	LGK-200IGBT
Input Power	V/Hz	3～380±15%50/60
Rated Input Capacity	KVA	9.5	22.4	32.2	38.8
Rated Input Current	A	14.5	34	49	71
Rated Output Current	A	63	120	160	200
Rated Output Voltage	V	106	128	144	160
Rated Open Circuit Voltage	V	300	300	315	315
Rated Duty Cycle		60%(40℃)	100%(40℃)
Output Current Adjust Range	A	30~63	30~120	40~160	40~200
Arc Voltage Output Ratio		1:1/1:20/1:50/1:100
Quality Cut Thickness(Carbon Steel)	mm	15	25	30	35
Handheld Severance Cut Thickness(Carbon Steel)	mm	25	45	55	65
Plasma Gas		Compressed Air
Air Pressure	Mpa	0.3~0.5	0.4~0.6
Torch Cooling Mode		Air Cooling		Air Cooling/Water Cooling
Power Source Cooling Mode		Air Cooling
Insulation Grade		F
Ingress Protection		IP21S
Dimension(LxWxH)	mm	585×280×485	695x320x580	800x380x610	800x380x810
Net Weight	Kg	26	52	73	82

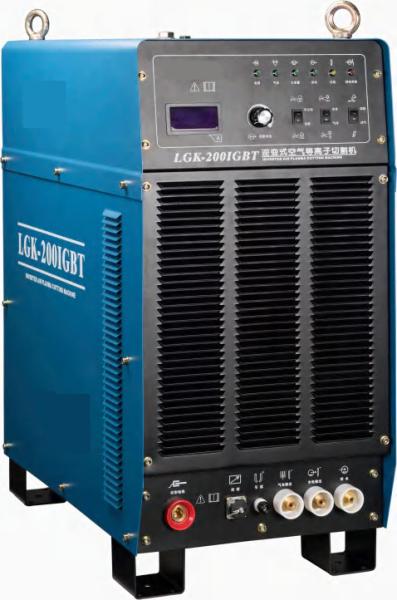

LGK-63/120/160/200IGBT Inverter Air Plasma Cutting Machine Images
